OILER
Pulsarlube OL500
SERIES
OL500 : Ø94mm(3.70") x 229mm(9.02") (H)
-
OL500
The Pulsarlube OL500 is our latest innovation in oil lubrication with an average operating pressure of 10bar.
The Pulsarlube OL500 oil lubricator consists of the main body with a vertical self-priming pump controlled by the microprocessor, a 500ml oil reservoir, and a battery pack. This product has the ability to precisely deliver very small amounts of lubricant with selectable intermittent dispensing cycle. The volume of output is adjustable from 0.70ml to 33.4ml/day, equivalent to the service period of Half month to 24months for the 500ml oil reservoir. It is available with up to 4 feeds by using optional installation kits.
NOTE : The Pulsarlube OL500 is a reusable unit but the battery pack must be replaced when each dispensing period set is complete.
NOTE : The OL500 is also available as MSPOL500/VDC or VAC versions.
NOTE : The Pulsarlube OL500 is a reusable unit but the battery pack must be replaced when each dispensing period set is complete.
NOTE : The OL500 is also available as MSPOL500/VDC or VAC versions.
FEATURES
10bar
High operating pressure with a wide range of acceptable oil viscosity
Easy Refill
Refillable oil reservoir
Accessory Kit

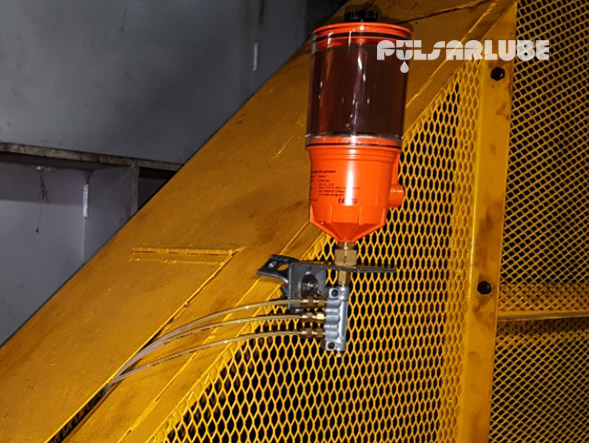

Up to 4 lube points for multi-point / Max. 6m (20ft) for a single point
LCD
Easy to program with built-in LCD and simple button controls
PRODUCT INFO
CROSS SECTION
SPEC & CERTIFICATIONS
| SPEC | Description |
|---|---|
| Oil Reservoir Capacity | 500ml (refillable) |
| Power Supply | DC 4.5V Battery Pack |
| Operating Pressure | 10bar (145psi) (depending on oil viscosity) |
| Operating Temperature | Standard Alkaline Battery : -15˚C~60˚C (5˚F~140˚F) |
| Dispensing Periods | 1, 2, 4, 6, 12, 18, 24 month & H (15 days) |

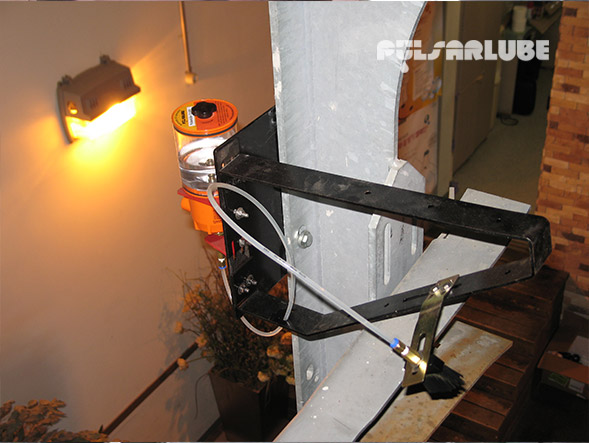

| Remote Installation | Max. 6m (20ft) with O.D. Ø4 tube |
| Multi-Point Installation | Max. 3m (10ft) with O.D. Ø4 tube (Up to 4 lube points) |
| Oil Viscosity Range | 10~10,000 cSt@40˚C * Special instructions available for 10~100 cSt@40˚C |
| IP Code | IP 54 |
| Packaging | 10 Units/Case |
| Certification | Description |
|---|---|
| IP Code | IP54 |

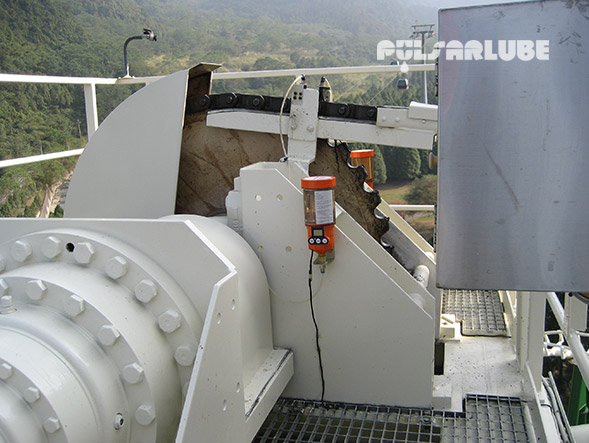

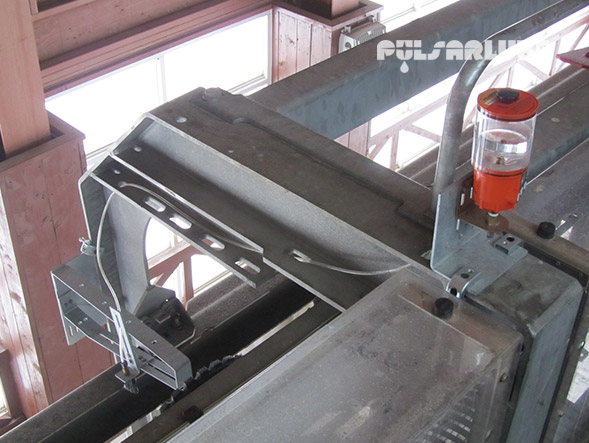

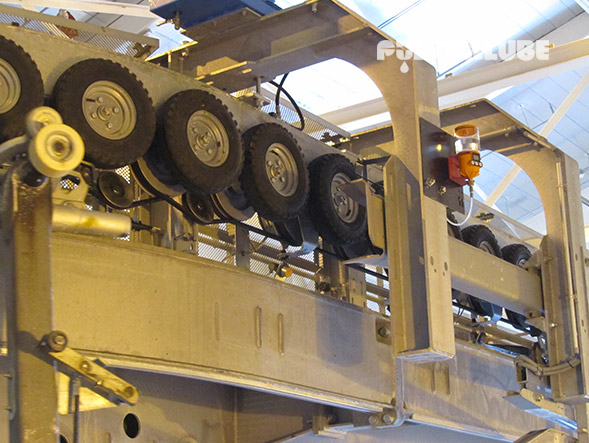

INSTALLATIONS
| Part No. | Description |
|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| B002 | Mounting Bracket, “L”Shape |
| B057 | Washer |
| A012 | Socket, 1/8”F x 1/8”F Adaptor (Brass) |
| C021-1 | O.D. 4mm Nylon Tubing (Clear), 10ft |
| C010 | Tube Clamp, Dia. 4mm x 1R |
| C007 | Tube Fitting, Dia. 4mm x PT1/8"M |
| C011 | Insert, Dia. 4mm x 2.5mm |
| C009 | Sleeve Ring, Dia. 4mm |
| Part No. | Description | Available Kits & Component Parts | ||
|---|---|---|---|---|
| 1250RO-2 | 1250RO-3 | 1250RO-4 | ||
| OL Unit | Available Separately | Sold separately | ||
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) | 1EA | ||
| B002 | Mounting Bracket, "L"Shape | 1EA | ||
| B057 | Washer | 1EA | ||
| B051 | Self Drilling Screw, #8 x 20 | 7EA | 9EA | 11EA |
| C006 | Reducer, PT 1/8"F x M8 x 1P | 1EA | ||
| C003-1 | Distributor, 3 (1P) M8 x 1P | 1EA | - | - |
| C003-2 | Distributor, 4 (2P) M8 x 1P | - | 1EA | - |
| C003-3 | Distributor, 5 (3P) M8 x 1P | - | - | 1EA |
| C004 | Resistance Valve, #1 Distributor Spray | 2EA | 3EA | 4EA |
| C021-2 | Distribution Tubing, O.D. 4mm x I.D. 2.5mm Nylon Tubing, 20ft (6m) | 1EA | - | - |
| C021-3 | Distribution Tubing, O.D. 4mm x I.D. 2.5mm Nylon Tubing, 30ft (9m) | - | 1EA | - |
| C021-4 | Distribution Tubing, O.D. 4mm x I.D. 2.5mm Nylon Tubing, 40ft (12m) | - | - | 1EA |
| C010 | Tube Clamp, Dia. 4mm x 1R | 4EA | 6EA | 8EA |
| C007 | Tube Fitting, Dia. 4mm x PT1/8"M | 2EA | 3EA | 4EA |
| C011 | Insert, Dia. 4mm x 2.5mm | 2EA | 3EA | 4EA |
| C009 | Sleeve Ring, Dia. 4mm | 4EA | 6EA | 8EA |
| Cable Tie | 4EA | 6EA | 8EA | |
