ELECTROMECHANICAL

Pulsarlube EXP/EXPL

SERIES EXP60: Ø91(3.60") x 181mm(7.13") (H)
  • Pulsarlube EXP/EXPL

    60

The Pulsarlube EXP/EXPL is a specifically designed electromechanical lubricator for the exclusive use in all applications where the explosion-proof certified devices must be used under all explosive gases or dusts exisitng environments.
QUICK DOWNLOAD
The Pulsarlube EXP/EXPL electromechanical automatic grease lubricator is the industry's first highest explosion-proof certified in industry and can be used safely in the area classified as danger zone. It boasts the best operating pressure(60bar) among existing explosion proof single point automatic lubricator and it excels at cost savings using an economical service pack that can be easily replaced. The circuits and parts of the Pulsarlube EXP/EXPL are designed based on the energy limitation concept by adopting a non-sparking, explosion-proof structure that keeps an electrical device from sparking an explosive gas whether it is working under normal or certain abnormal condition.

Note : EXP is available only in Asia Pacific, China & Europe.

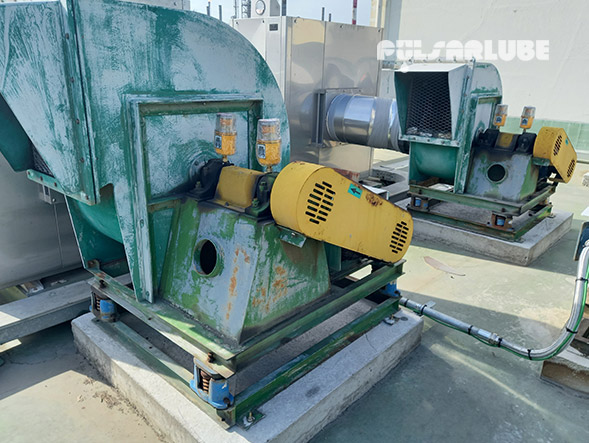

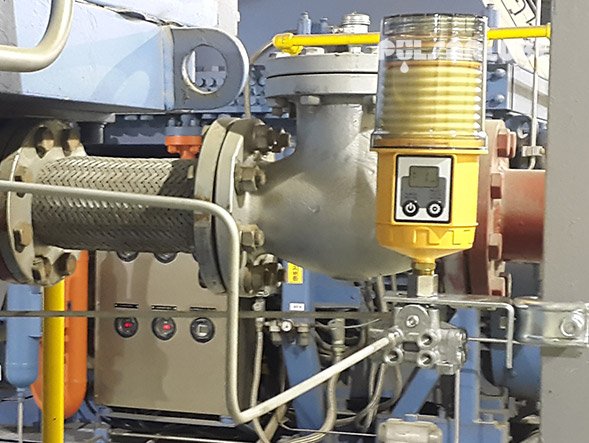

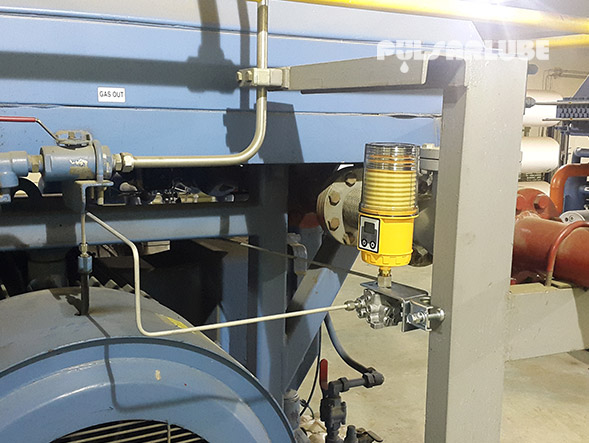

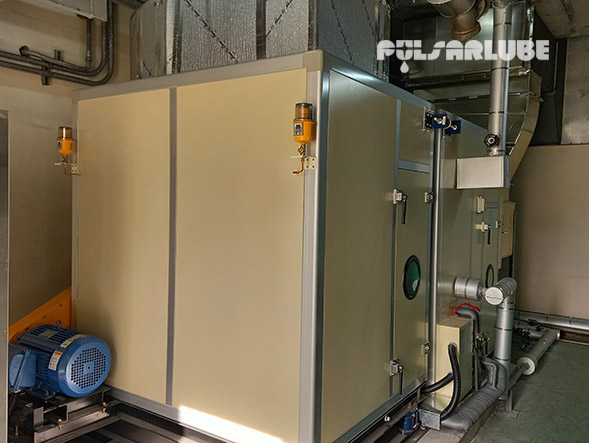

APPLICATIONS

-  5 Total

  1. 1
Search

Search

Please enter your password first.

CloseConfirm

FEATURES
60bar

60bar

The best operating pressure (60bar) among existing explosion proof single point automatic lubricator

Global Explosion Proof Certificat

Global Explosion Proof Certificat

The Industry’s first highest explosion-proof certified lubricator designed for safe use in the area classified as danger zone

IP65

IP65

IP65 – dust tight and protected against water jets

Service Pack

Service Pack

Substantial savings with the use of replaceable grease pouches and battery packs

PRODUCT INFO

CROSS SECTION

Cross-section

SPEC & CERTIFICATIONS

Technical Specifications
SPEC Description
Grease Pouch Capacity 60ml/120ml/240ml/480ml
(pre-set)
Power Supply DC 4.5V Battery Pack (replaceable)
Standard : Alkaline Battery
Optional : Lithium Battery
Operating Pressure 30~60bar (435~870psi)
Operating Temperature EXP : 0˚C~50˚C (32°F~122°F)
EXPL : -15˚C~50˚C (5°F~122°F)
Dispensing Periods 60ml : 1~12 month
120ml~480ml : 1, 2, 3, 6, 9, 12 month
Remote Installation Max. 6m (20ft) with Ø6 tube
Multi-Point Installation Lithium Battery : Max. 3m (10ft) with Ø6 tube (Up to 8 lube points)
Packaging 10 Units/Case
Product Certifications
Certification Description
IP Code
ATEX
KCs
CE / Etc. CE
IECEx
NEPSI
TS
ETL

INSTALLATIONS

Reducer
Reducer
Part No. Description
A001 Reducer, 3/8"F x 1/4"M Adaptor (Brass)
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
A002-S Reducer, 3/8"F x 1/8"M Adaptor (Brass)
Socket + Pipe + Reducer
Socket + Pipe + Reducer
Part No. Description
A011 Socket, 1/4"F x 1/4"F Adaptor (Brass)
A012 Socket, 1/8"F x 1/8"F Adaptor (Brass)
Part No. DESCRIPTION
A121 Pipe,1/4”M x 1/4”M x 50mm (Steel)
A122 Pipe,1/4”M x 1/4”M x 100mm (Steel)
A123 Pipe,1/4”M x 1/4”M x 150mm (Steel)
A124 Pipe,1/4”M x 1/4”M x 200mm (Steel)
Part No. DESCRIPTION
A106 Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel)
A107 Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel)
A108 Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel)
A109 Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel)
45˚ Elbow
45˚ Elbow
Part No. Description
A023 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A024 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass)
90˚ Elbow
90˚ Elbow
Part No. Description
A019 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass)
A020 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass)
A021 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A022 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass)

If the bearing lube point is NPT, use the thread converter (A243) to convert thread metric to inch for bearing zerk (USA only)

Comments
  • All Parts should be assembled tightly with PTFE tape.
  • For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
  • If the bearing lube point is NPT, use the thread converter.
Kit No. 1250RC-1
Kit No. 1250RC-1
Part No. Description
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
B002 Mounting Bracket, “L”Shape
B051 Self Drilling Screw, #8 x 20
B057 Washer
A012 Socket, 1/8”F x 1/8”F Adaptor (Brass)
A240 Tube Fitting, Push-In Type, PC6-PT1/8”M
A214-1 Distribution Tubing, O.D. 1/4"(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type)
A243 Thread Converter, PT1/8"F x NPT1/8"M (Brass)

Note : For remote installation using a tube, use an 8mm O.D. (5/16″) tubing pre-filled with the same or compatible grease as the grease contained in the unit. Recommend using under short dispensing period settings due to powerful dispensing pressure.

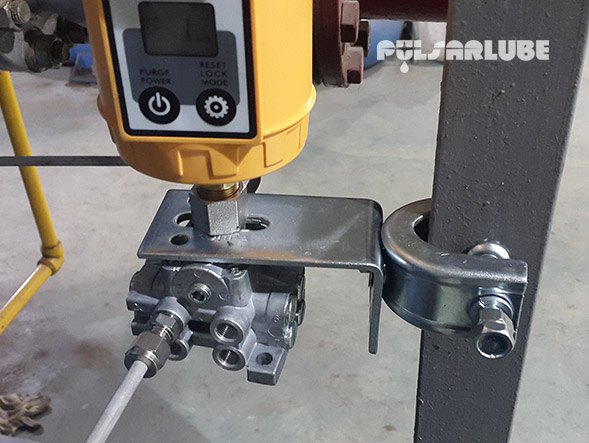

Electromechanical Products using a divider block ( up to 8 points )
Electromechanical Products using a divider block ( up to 8 points )
Part No. Description Q'TY
A002 Reducer, 3/8″F x 1/8″M Adaptor (Brass) 1
B002 Mounting Bracket, “L”Shape 1
B051 Self Drilling Screw, #8 x 20 1
DU-2RS ~ DU-8RS DU Type Divider Block, Grease Type, 2 Ports ~ 8 Ports 1
B058 Tooth Washer 2
A240 Tube Fitting, Push-In Type, PC6-PT1/8”M 3
A214-1 Distribution Tubing, O.D. 1/4″(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type) 1
A243 Thread Converter, PT1/8″F x NPT1/8″M (Brass) 1
